Adjustable White Light
Tune the light appearance from warm 3000K to cool 6500K.
Adjustable White Light from Warm to Cool

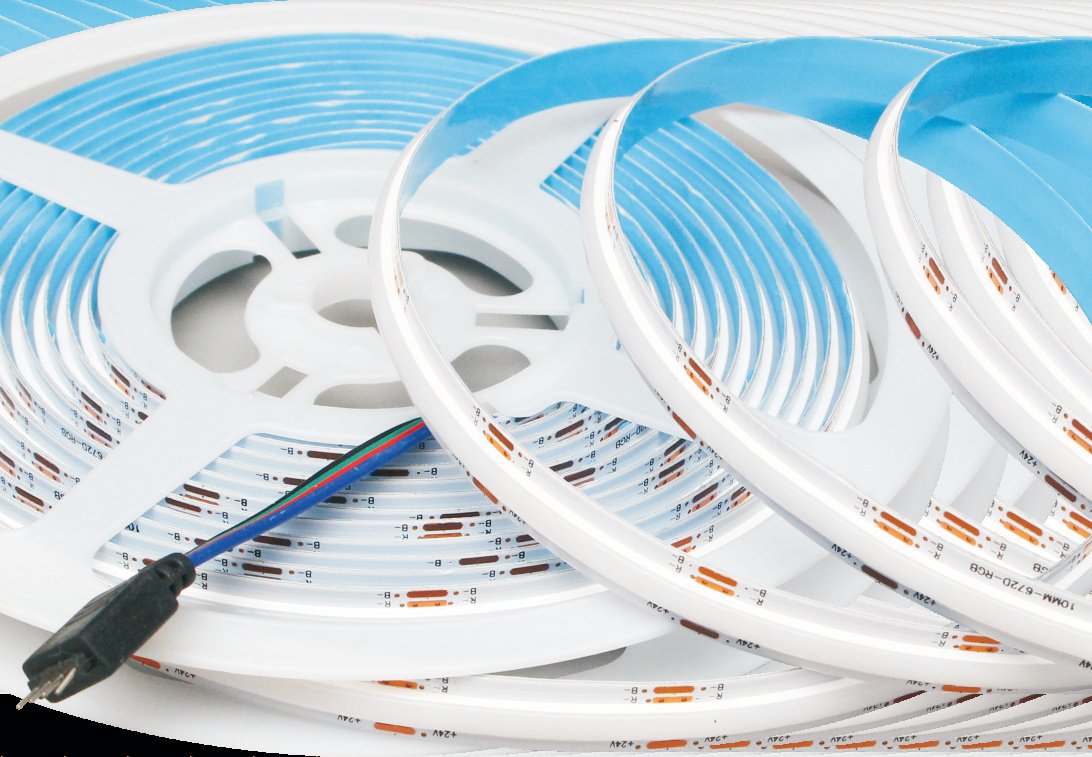

The BrotherLED tunable white COB series provides continuous linear light with an adjustable 3000K to 6500K range. It supports interiors that need both warmer ambience and cooler task light from one strip.
The catalogue includes 5mm, 6.6mm, 8mm and 10mm model families in two-wire and selected three-wire configurations.
Technical Data
Product Specifications
Input Voltage
DC5V / DC12V / DC24V (model dependent)
Power
10–14 W/m
PCB Width
5 mm / 6.6 mm / 8 mm / 10 mm
LED Density
480–672 chips/m
Luminous Efficacy
95–120 lm/W
CRI
Ra 80–90
Color / CCT
3000K–6500K tunable white
IP Rating
IP20
Dimensions
5 mm, 6.6 mm, 8 mm or 10 mm PCB width
Series Type
Tunable white COB LED strip
Adjustable CCT Range
3000K–6500K
Control Wiring
2-wire; selected 3-wire model
PCB Width Options
5mm, 6.6mm, 8mm and 10mm
Operating Environment
Dry indoor locations
Model Selection
Available Variants
Use the table to compare optical, electrical and mechanical options.

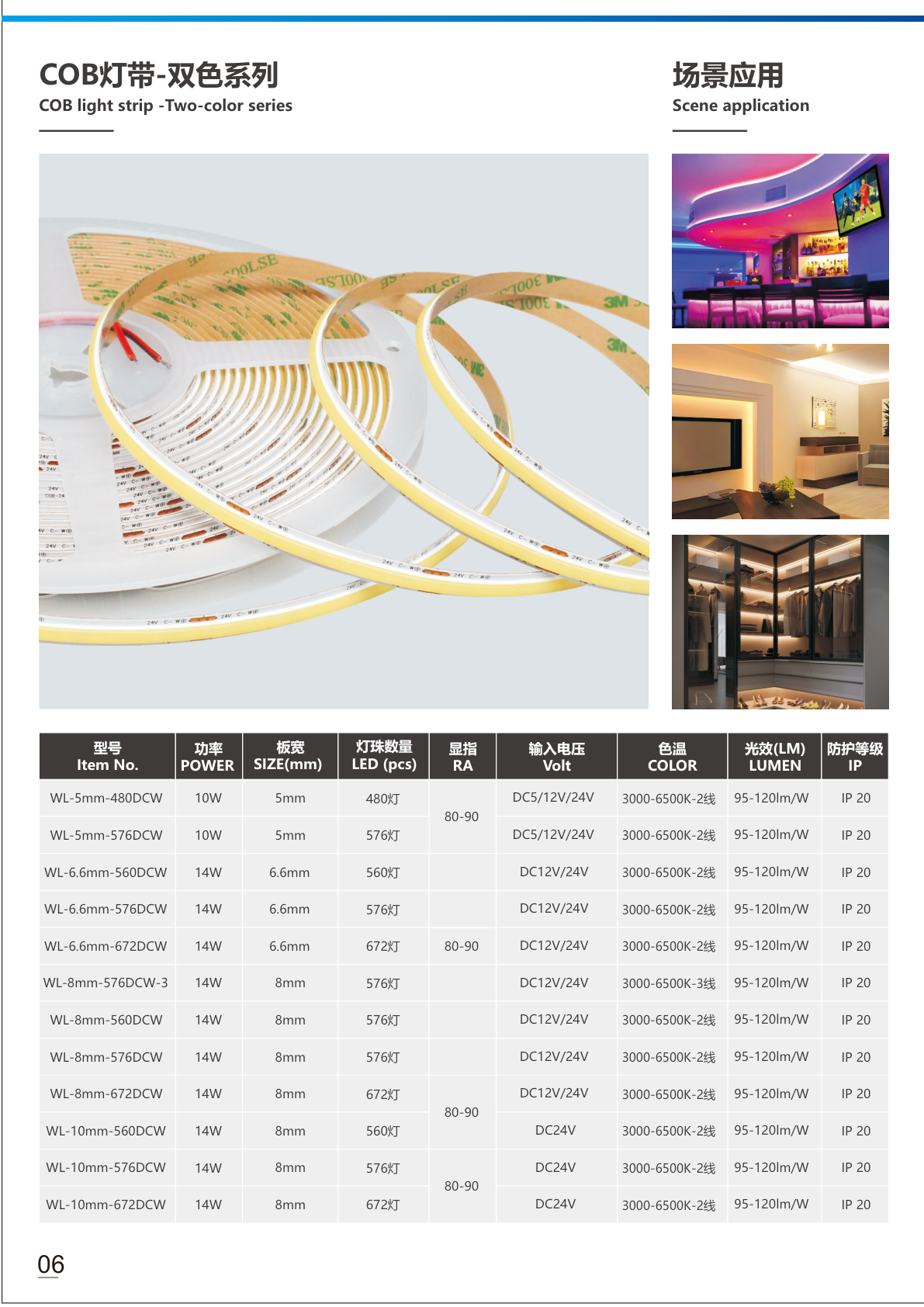

| Model | Light Output | LEDs/m | Voltage | Power | lm/W | PCB Width | CRI | Color / CCT | IP |
|---|---|---|---|---|---|---|---|---|---|
| WL-5mm-480DCW | 480 chips/m | DC5V / DC12V / DC24V | 10 W/m | 95–120 lm/W | 5 mm | Ra 80–90 | 3000K–6500K, 2-wire | IP20 | |
| WL-5mm-576DCW | 576 chips/m | DC5V / DC12V / DC24V | 10 W/m | 95–120 lm/W | 5 mm | Ra 80–90 | 3000K–6500K, 2-wire | IP20 | |
| WL-6.6mm-560DCW | 560 chips/m | DC12V / DC24V | 14 W/m | 95–120 lm/W | 6.6 mm | Ra 80–90 | 3000K–6500K, 2-wire | IP20 | |
| WL-6.6mm-576DCW | 576 chips/m | DC12V / DC24V | 14 W/m | 95–120 lm/W | 6.6 mm | Ra 80–90 | 3000K–6500K, 2-wire | IP20 | |
| WL-6.6mm-672DCW | 672 chips/m | DC12V / DC24V | 14 W/m | 95–120 lm/W | 6.6 mm | Ra 80–90 | 3000K–6500K, 2-wire | IP20 | |
| WL-8mm-576DCW-3 | 576 chips/m | DC12V / DC24V | 14 W/m | 95–120 lm/W | 8 mm | Ra 80–90 | 3000K–6500K, 3-wire | IP20 | |
| WL-8mm-560DCW | 560 chips/m | DC12V / DC24V | 14 W/m | 95–120 lm/W | 8 mm | Ra 80–90 | 3000K–6500K, 2-wire | IP20 | |
| WL-8mm-576DCW | 576 chips/m | DC12V / DC24V | 14 W/m | 95–120 lm/W | 8 mm | Ra 80–90 | 3000K–6500K, 2-wire | IP20 | |
| WL-8mm-672DCW | 672 chips/m | DC12V / DC24V | 14 W/m | 95–120 lm/W | 8 mm | Ra 80–90 | 3000K–6500K, 2-wire | IP20 | |
| WL-10mm-560DCW | 560 chips/m | DC24V | 14 W/m | 95–120 lm/W | 10 mm | Ra 80–90 | 3000K–6500K, 2-wire | IP20 | |
| WL-10mm-576DCW | 576 chips/m | DC24V | 14 W/m | 95–120 lm/W | 10 mm | Ra 80–90 | 3000K–6500K, 2-wire | IP20 | |
| WL-10mm-672DCW | 672 chips/m | DC24V | 14 W/m | 95–120 lm/W | 10 mm | Ra 80–90 | 3000K–6500K, 2-wire | IP20 |
Product Features
Dotless COB Output
The continuous emitting surface creates a smooth line for visible architectural details.
Four Width Families
Choose 5mm, 6.6mm, 8mm or 10mm according to the channel and project layout.
Two-Wire Options
The catalogue includes compact two-wire tunable white models plus a selected three-wire design.
Dense Chip Layout
Available configurations cover 480 to 672 chips per meter.
Efficient Performance
Catalogue luminous efficacy is listed at 95 to 120 lm/W.
One Strip, Adjustable White Appearance
Tunable white lighting combines warm and cool white channels so the final appearance can be adjusted from 3000K to 6500K with a compatible control system. It supports spaces that change between relaxation, presentation and task-lighting modes.
Choose Width, Wiring and Voltage
Start with the available channel width, then confirm two-wire or three-wire control requirements. Voltage depends on the model: compact 5mm options include DC5V, DC12V and DC24V, while larger high-density versions use DC12V or DC24V.
Plan the Control System
A tunable white installation requires compatible control and power components. Send us the required run length, control method and desired wiring so the strip and system can be matched before ordering.
Applications

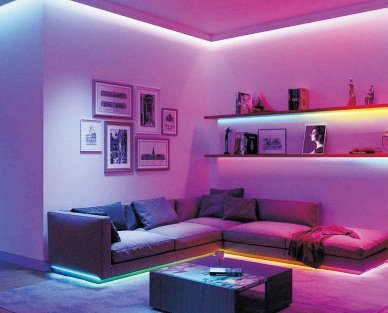

Hospitality Ambience
Shift from welcoming warm light to brighter cool light in bars, lounges and guest spaces.
Residential Living Areas
Use adjustable white light for evening ambience, daytime activity and accent illumination.

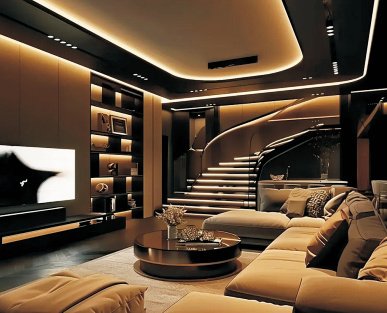

Retail & Wardrobe Lighting
Tune white light for product display, wardrobe details and changing visual environments.
Engineering Reference
Dimensions & Wiring
Resources
Product Downloads
Frequently Asked Questions
What color-temperature range is available?
The catalogue lists adjustable white light from 3000K to 6500K.
Does tunable white require a controller?
Yes. Use a compatible tunable-white control and power system selected for the wiring and voltage of the chosen model.
Which PCB widths are offered?
The series includes 5mm, 6.6mm, 8mm and 10mm model options.
Are two-wire models available?
Yes. Most models in the catalogue are listed as two-wire, with one selected 8mm three-wire configuration.
Is the strip waterproof?
The models on this page are IP20 for dry indoor use. Ask us for a suitable protected version where moisture protection is required.
Custom LED Solution
Planning a tunable white COB project?
Tell us the width, voltage, wiring, run length and control method. We will help match the strip and system components.
