RGB Color Mixing
Create adjustable colors and lighting scenes with a compatible RGB control system.

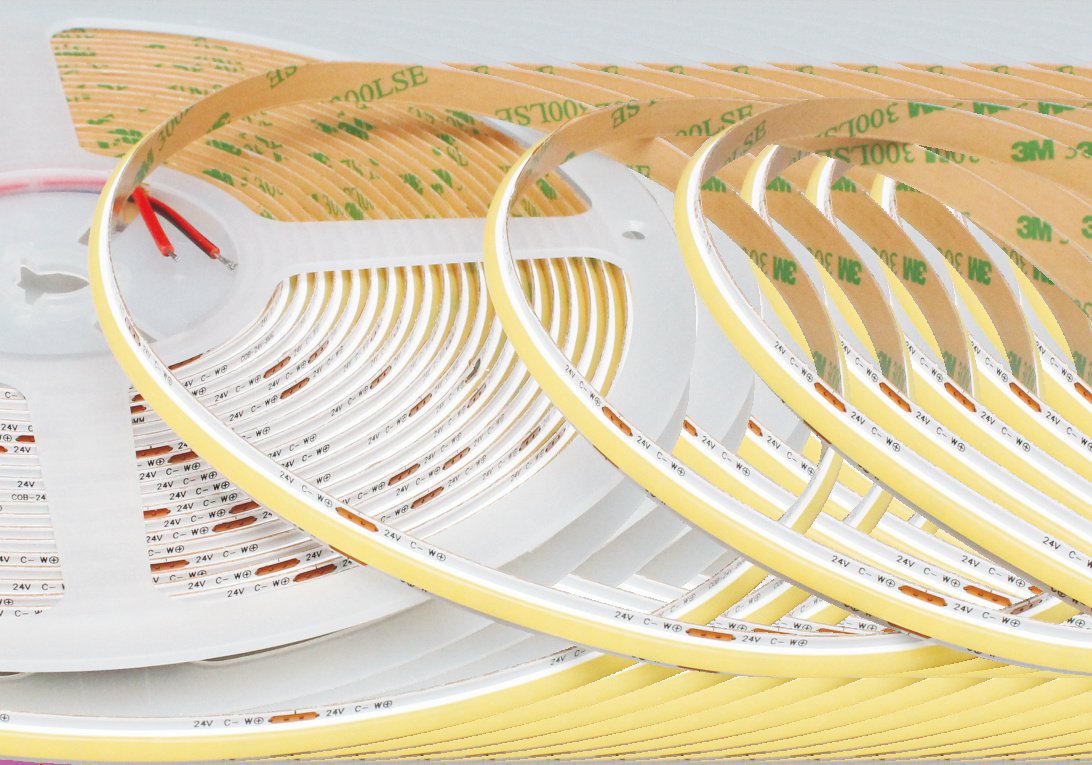

Smooth Color-Changing COB Linear Light
The BrotherLED RGB COB LED strip series combines continuous COB illumination with adjustable red, green and blue color mixing for decorative, hospitality and entertainment interiors.
Six catalogue models cover 8mm and 10mm PCB widths, 420 to 960 chips per meter and DC12V or DC24V configurations.
Technical Data
Product Specifications
Input Voltage
DC12V / DC24V (model dependent)
Power
12–17 W/m
PCB Width
8 mm / 10 mm
LED Density
420–960 chips/m
Color / CCT
RGB color mixing
IP Rating
IP20
Dimensions
8 mm or 10 mm PCB width
Series Type
RGB color-changing COB LED strip
Color System
Red, green and blue color mixing
PCB Width Options
8mm and 10mm
Control Requirement
Compatible RGB controller and power supply
Operating Environment
Dry indoor locations
Model Selection
Available Variants
Use the table to compare optical, electrical and mechanical options.
| Model | Light Output | LEDs/m | Voltage | Power | lm/W | PCB Width | CRI | Color / CCT | IP |
|---|---|---|---|---|---|---|---|---|---|
| WL-8mm-576RGB | 576 chips/m | DC12V / DC24V | 14 W/m | 8 mm | RGB | IP20 | |||
| WL-10mm-420DRGB | 420 chips/m | DC12V / DC24V | 12 W/m | 10 mm | RGB | IP20 | |||
| WL-10mm-576DRGB | 576 chips/m | DC12V / DC24V | 15 W/m | 10 mm | RGB | IP20 | |||
| WL-10mm-672DRGB | 672 chips/m | DC24V | 16 W/m | 10 mm | RGB | IP20 | |||
| WL-10mm-720DRGB | 720 chips/m | DC24V | 17 W/m | 10 mm | RGB | IP20 | |||
| WL-10mm-960DRGB | 960 chips/m | DC24V | 17 W/m | 10 mm | RGB | IP20 |
Product Features
Continuous COB Light
The emitting surface produces a smoother color line with reduced visible spotting.
High Chip Density
Choose from 420 to 960 chips per meter according to model.
8mm and 10mm Formats
Two PCB widths support different channel sizes and project layouts.
DC12V and DC24V
Low-voltage configurations are available for different run lengths and control designs.
Decorative Applications
Designed for lounges, home theaters, stair details and entertainment interiors.
Continuous RGB Color Effects
RGB control mixes red, green and blue channels to create a wide range of colors. Combined with the continuous COB emitting surface, the series delivers a cleaner linear effect for visible decorative installations.
Choose 8mm or 10mm
The 8mm model provides a compact 576 chips/m option. The 10mm family expands the selection from 420 to 960 chips/m with power from 12 to 17 W/m. Voltage and controller capacity should be selected for the chosen model and run length.
Plan Controller and Power Capacity
RGB COB strips require a compatible RGB controller plus a suitable DC power supply. Share the installation length, control method and desired effects so the full system can be sized correctly.
Applications

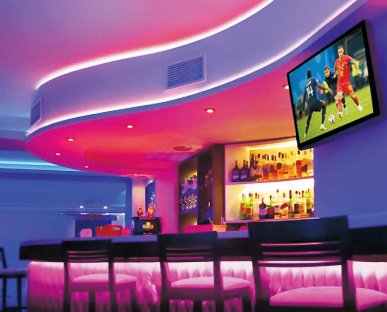

Lounge & Living Spaces
Create adjustable color accents around ceilings, shelving and furniture.

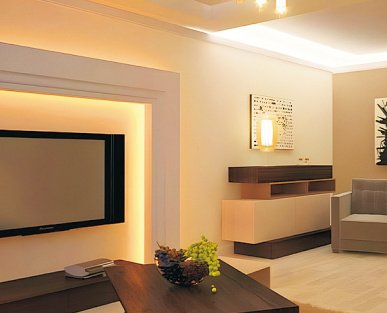

Stairs & Circulation Areas
Use continuous color light to define steps, corridors and architectural edges.

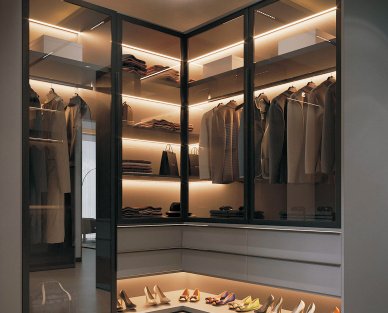

Home Theater & Entertainment
Build immersive color scenes for gaming rooms, media spaces and entertainment venues.
Engineering Reference
Dimensions & Wiring
Resources
Product Downloads
Frequently Asked Questions
What colors can an RGB COB strip produce?
A compatible controller mixes red, green and blue channels to create a broad range of colors and programmed effects.
Does the strip require an RGB controller?
Yes. A compatible RGB controller and correctly sized DC power supply are required.
Which widths are available?
The catalogue lists one 8mm model and five 10mm models.
Should I choose DC12V or DC24V?
The choice depends on the selected model, run length and controller design. DC24V is used on the higher-density models.
Can it be used outdoors?
The models listed here are IP20 for dry indoor use. Ask for a suitable protected RGB COB construction for wet or outdoor installations.
Custom LED Solution
Need an RGB COB strip and controller match?
Send us the run length, voltage, desired effects and control method so we can recommend the strip, controller and power capacity.
