Dotless Linear Output
The continuous COB emitting surface creates a smoother line of light with reduced visible spotting.

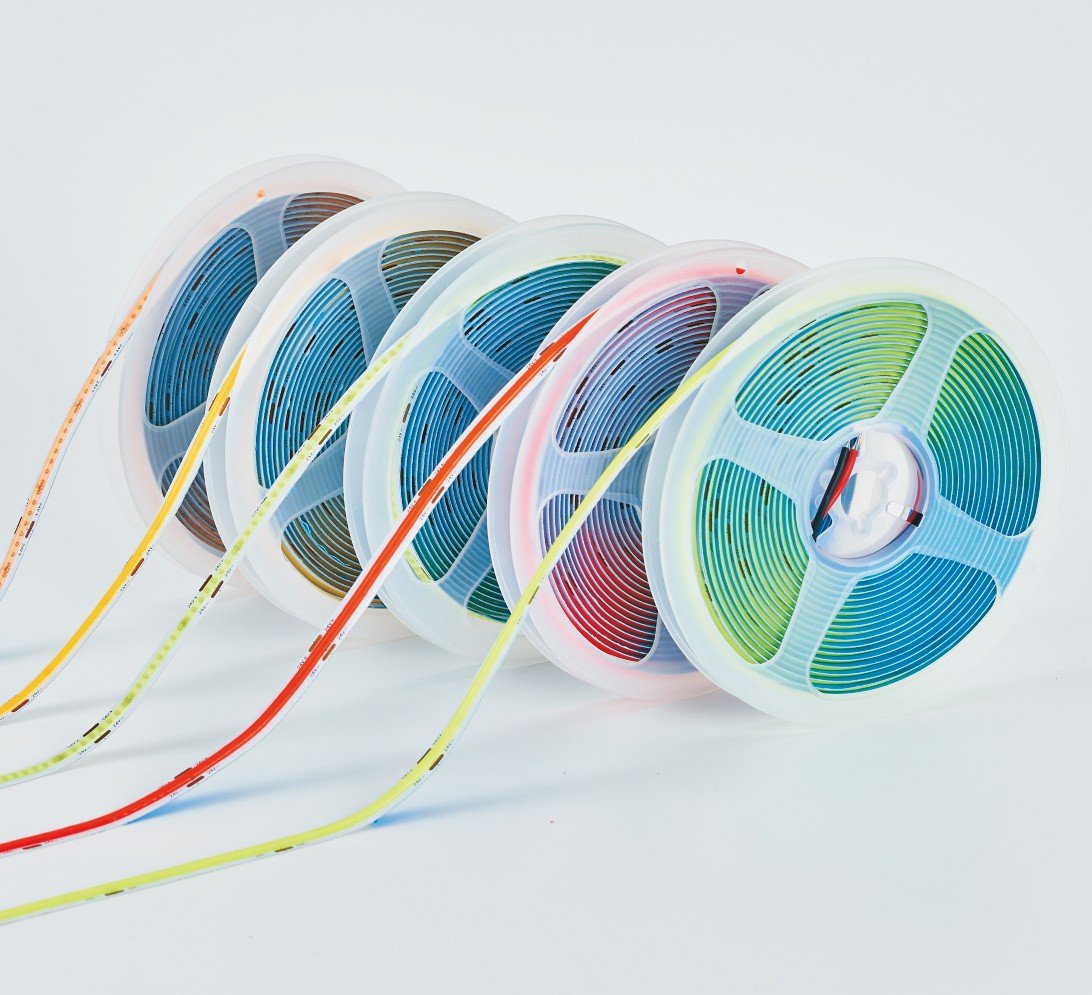

Continuous Light in a Slim 8mm Format
The BrotherLED 8mm COB LED strip series is designed for projects that need a clean, continuous line of light in a narrow profile. Its dense chip layout and continuous phosphor surface reduce the visible light spots commonly associated with conventional LED tape.
The series covers 12 models from 252 to 840 chips per meter. Designers can select DC5V, DC12V or DC24V models, power from 10 to 16 W/m, standard white color temperatures and a broad range of decorative colors.
Technical Data
Product Specifications
Input Voltage
DC5V / DC12V / DC24V (model dependent)
Power
10–16 W/m
PCB Width
8 mm
LED Density
252–840 chips/m
Luminous Efficacy
90–110 lm/W
CRI
Ra 80–90
Color / CCT
2700K / 3000K / 4000K / 6500K + color options
IP Rating
IP20
Dimensions
8 mm PCB width
Series Type
8mm COB LED strip
Light Appearance
Continuous dotless linear light
White CCT Options
2700K, 3000K, 4000K, 6500K
Decorative Colors
Red, green, blue, pink, ice blue, purple, Mars green, sky blue, violet, golden yellow
Operating Environment
Dry indoor locations
Model Selection
Select voltage, power and chip density by application
Model Selection
Available Variants
Use the table to compare optical, electrical and mechanical options.

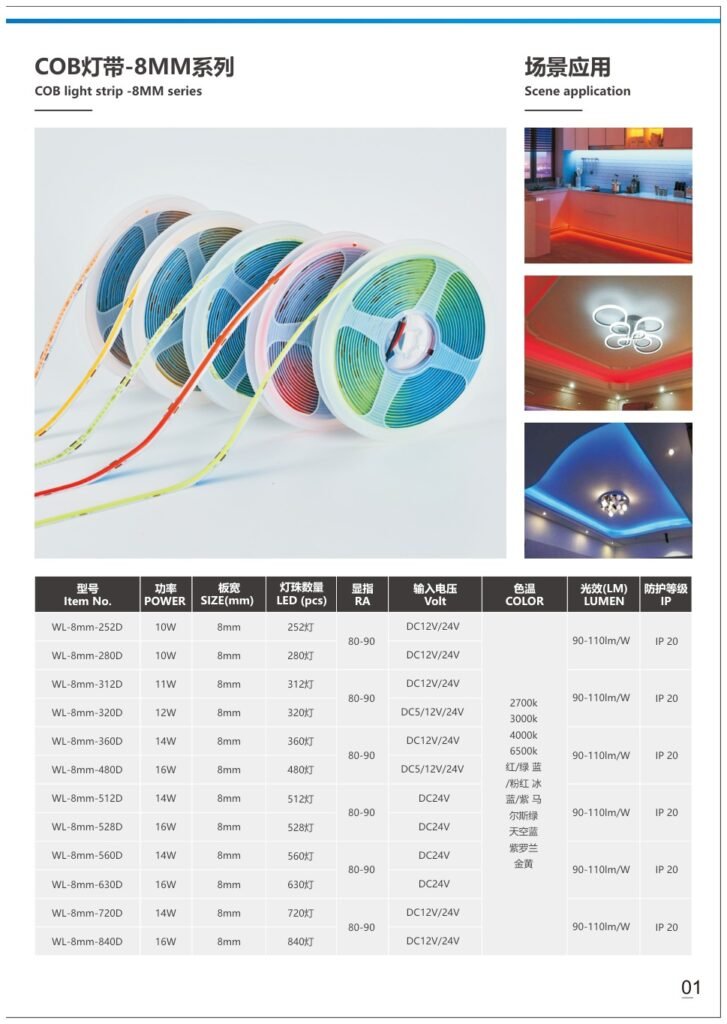

| Model | Light Output | LEDs/m | Voltage | Power | lm/W | PCB Width | CRI | Color / CCT | IP |
|---|---|---|---|---|---|---|---|---|---|
| WL-8mm-252D | 252 chips/m | DC12V / DC24V | 10 W/m | 90–110 lm/W | 8 mm | Ra 80–90 | White / color options | IP20 | |
| WL-8mm-280D | 280 chips/m | DC12V / DC24V | 10 W/m | 90–110 lm/W | 8 mm | Ra 80–90 | White / color options | IP20 | |
| WL-8mm-312D | 312 chips/m | DC12V / DC24V | 11 W/m | 90–110 lm/W | 8 mm | Ra 80–90 | White / color options | IP20 | |
| WL-8mm-320D | 320 chips/m | DC5V / DC12V / DC24V | 12 W/m | 90–110 lm/W | 8 mm | Ra 80–90 | White / color options | IP20 | |
| WL-8mm-360D | 360 chips/m | DC12V / DC24V | 14 W/m | 90–110 lm/W | 8 mm | Ra 80–90 | White / color options | IP20 | |
| WL-8mm-480D | 480 chips/m | DC5V / DC12V / DC24V | 16 W/m | 90–110 lm/W | 8 mm | Ra 80–90 | White / color options | IP20 | |
| WL-8mm-512D | 512 chips/m | DC24V | 14 W/m | 90–110 lm/W | 8 mm | Ra 80–90 | White / color options | IP20 | |
| WL-8mm-528D | 528 chips/m | DC24V | 16 W/m | 90–110 lm/W | 8 mm | Ra 80–90 | White / color options | IP20 | |
| WL-8mm-560D | 560 chips/m | DC24V | 14 W/m | 90–110 lm/W | 8 mm | Ra 80–90 | White / color options | IP20 | |
| WL-8mm-630D | 630 chips/m | DC24V | 16 W/m | 90–110 lm/W | 8 mm | Ra 80–90 | White / color options | IP20 | |
| WL-8mm-720D | 720 chips/m | DC12V / DC24V | 14 W/m | 90–110 lm/W | 8 mm | Ra 80–90 | White / color options | IP20 | |
| WL-8mm-840D | 840 chips/m | DC12V / DC24V | 16 W/m | 90–110 lm/W | 8 mm | Ra 80–90 | White / color options | IP20 |
Product Features
Slim 8mm PCB
The narrow flexible board fits compact channels, cabinet details, shelving and architectural coves.
12 Model Options
Choose from 252 to 840 chips per meter and power levels between 10 and 16 W/m.
Multiple Voltages
The series includes DC5V, DC12V and DC24V configurations for different project requirements.
White & Color Light
Four standard white CCTs and a broad decorative color range are listed in the BrotherLED catalogue.
Efficient Performance
Catalogue efficacy is rated at 90–110 lm/W across the 8mm series.
What Is an 8mm COB LED Strip?
COB means “chip on board.” Multiple LED chips are mounted closely on the flexible PCB and covered by a continuous light-converting layer. The result is a smoother, more uniform light line than a conventional strip with individually visible LED packages.
The 8mm format balances a slim installation width with a wide selection of chip densities, voltages and power levels.
Choose the Right Model
Start with the available supply voltage, then select the required power and chip density. Lower-density 252 and 280 chips/m versions use 10 W/m, while higher-output configurations reach 16 W/m. DC24V models are a practical choice for longer low-voltage runs; DC5V and DC12V options are available on selected models.
Use the model table below together with your target brightness, run length and power supply design.

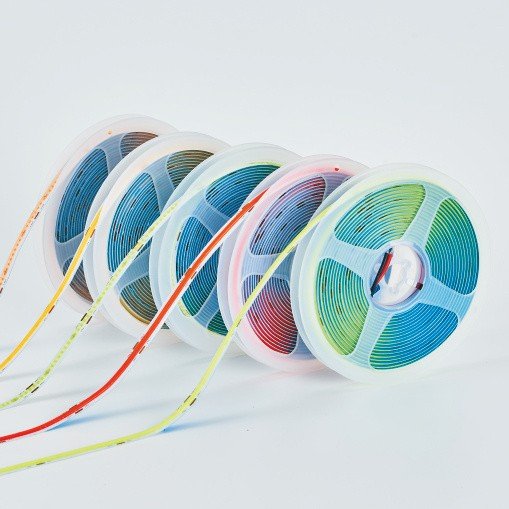

Color & Project Customization
The catalogue lists 2700K, 3000K, 4000K and 6500K white light, plus red, green, blue, pink, ice blue, purple, Mars green, sky blue, violet and golden yellow.
This 8mm series is listed as IP20 for dry indoor installations. If your project needs waterproof protection, a different construction or project-specific accessories, send us the installation details so we can recommend the appropriate BrotherLED COB series.
Applications

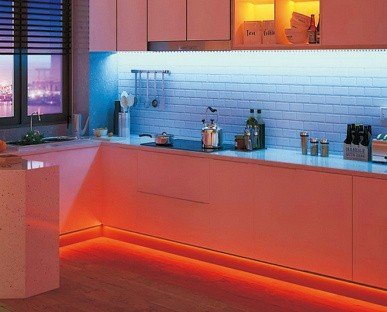

Cabinet & Kitchen Lighting
Use the slim strip under cabinets, along plinths or inside shelving to create clean task and accent light.

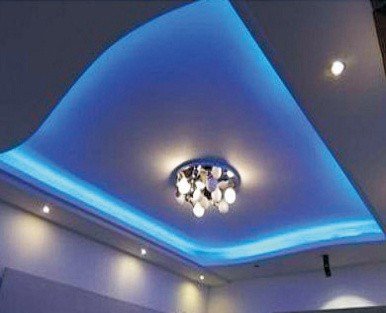

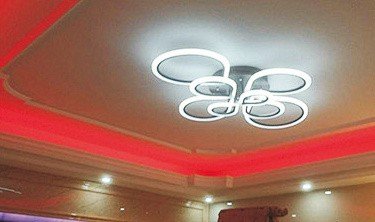

Ceiling Cove Lighting
Continuous colored or white light can define ceiling edges and create a soft indirect glow.
Decorative Interior Accents
The available color options suit hospitality, residential and entertainment interior details.
Engineering Reference
Dimensions & Wiring
Resources
Product Downloads
Frequently Asked Questions
What does the 8mm size refer to?
It refers to the width of the flexible PCB used throughout this product series.
Is the light output dotless?
The continuous COB emitting surface is designed to produce a smoother light line with much less visible spotting than conventional packaged-LED tape.
Which voltage should I choose?
Available voltage depends on the selected model. DC24V is commonly selected for longer low-voltage runs, while DC5V and DC12V versions are available for specific system designs. Confirm the power supply and maximum run length before ordering.
Which colors are available?
The catalogue lists 2700K, 3000K, 4000K and 6500K white light together with red, green, blue, pink, ice blue, purple, Mars green, sky blue, violet and golden yellow.
Can this IP20 strip be installed outdoors?
No. The models on this page are rated IP20 for dry indoor use. Ask our team about an appropriate waterproof COB construction for outdoor or wet-area projects.
How do I select between 252 and 840 chips per meter?
Choose according to the required power, light-line uniformity, supply voltage and project budget. Share your channel dimensions, run length and target lighting effect with us for a model recommendation.
Custom LED Solution
Need help selecting an 8mm COB model?
Send us your required voltage, run length, color, power and installation details. We will recommend a suitable model and power-supply configuration.
